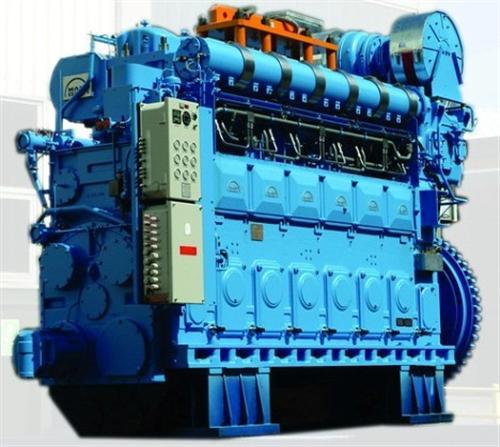

MAN DIESEL ENGINE SPARE PARTS TYPE ：6L 16/24 TIER1

TYPE ：6L 16/24 TIER1

 1 Roller Guide complete Part No. 51401-04H 014

 2-1 Kit for cylinder unit,complete MWH Part No. 50500-01H 021

 2-2 Kit for cylinder unit,complete Part No. 50500-01H 021

 3-1 Valve spindle, inlet MWH Part No. 50502-03H 274

 3-2 Valve spindle, inlet Part No. 50502-03H 274

 4-1 Valve spindle, exhaust MWH Part No. 50502-03H 262

 4-2 Valve spindle, exhaust Part No. 50502-03H 262

 5 O-ring Part No. 50510-02H 014

 6 Pressure spring Part No. 51402-08H 070

 7 O-ring Part No. 51404-07H 274

 8 Solenoid valve 2/2,complete Part No. 51330-02H 140

 9 Pressure reduction valve Part No. 51309-06H 612

 10 O-ring Part No. 51501-06H 018

 11 Cylindrical pin Part No. 51501-06H 055

 12 Screw Part No. 51501-06H 067

 13 Bush Part No. 51501-06H 102

 14 Screw Part No. 51501-06H 114

 15 Gear wheel,5-6 cyl.engine Part No. 51501-06H 151

 16 Gear wheel,5-6 cyl.engine Part No. 51501-06H 126

 17 Washer Part No. 51501-06H 187

 18 Screw Part No. 51501-06H 199

 19 Cylinder head Part No. 50501-03H 027

 20 Rocker arm,inlet complete Part No. 50502-03H 022

 21 Rotocap complete Part No. 50502-03H 191

 22 Adjusting screw Part No. 50502-03H 154

 23 Adjusting screw complete Part No. 50502-03H 083

 24 Bearing bush Part No. 50502-03H 046

 25 Part No. 50510-02H 026

 26 Roller Part No. 50801-02H 053

 27 Shaft Part No. 50801-02H 065

 28-1 Piston 2/2,incl. item 259 Part No. 50601-03H 081

 28-2 Piston 2/2,incl. item 259 Part No. 50601-03H 081

 29 Bush for connecting rod Part No. 50601-03H 056

 30-1 Piston pin Part No. 50601-03H 019

 30-2 Piston pin Part No. 50601-03H 019

 31 Thrust bearing ring Part No. 51101-04H 253

 32 Tierod Part No. 51101-04H 182

 33 Operation box.. Part No. 50935-02H 015

 34 Monitor temp./press. (MTP).. Part No. 50935-02H 027

 35 Monitor exh. gas temp. (MEG).. Part No. 50935-02H 039

 36 Safety system (CPU).. Part No. 50935-02H 040

 37 Base socket.. Part No. 50935-02H 052

 38 Base module (MB).. Part No. 50935-02H 064

 39 I/O module.. Part No. 50935-02H 076

 40 Panel (A1).. Part No. 50935-02H 135

 41 O-ring Part No. 51106-04H 477

 42 O-ring Part No. 51106-04H 298

 43 O-ring Part No. 51106-04H 166

 44 O-ring Part No. 51106-04H 237

 45 O-ring Part No. 51106-04H 191

 46 O-ring Part No. 51106-04H 321

 47 Screw Part No. 51106-04H 249

 48 Gasket reversing cover Part No. 51201-06H 150

 49 O-ring Part No. 51201-06H 030

 50 Gasket end cover Part No. 51201-06H 113

 51 O-ring Part No. 51206-02H 014

 52 Screw Part No. 51206-02H 051

 53 Loctite Part No. 51206-02H 217

 54 Complete set of seals Part No. 51309-05H 614

 55-1 Air starter, complete Part No. 51309-05H 500

 55-2 Air starter, complete Part No. 51309-05H 500

 56 Repair kit for air starter Part No. 51309-05H 615

 57 Position swich Part No. 51325-02H 060

 58 Pipe Part No. 51330-02H 032

 59 Pipe Part No. 51330-02H 044

 60 Straight coupling Part No. 51330-02H 152

 61 O-ring Part No. 50610-03H 043

 62 O-ring Part No. 50610-03H 055

 63 Flame ring Part No. 50610-03H 092

 64 Cylinder liner Part No. 50610-03H 018

 65 Injection nozzle Part No. 51402-08H 021

 66 Pump element,complete Part No. 51401-07H 087

 67 “Kit for Fuel injection pump, complete consisting of:

 ” Part No. 51730-07 839

 68 “Solenoid valve 3/2,complete

 ” Part No. 51327-01H 012

 69 Complete set of seals Part No. 51309-05H 614

 70 Repair kit for air starter Part No. 51309-05H 615

 71 Set of O-rings with back-up ring Part No. 52021-09H 430

 72 Set of O-rings with back-up ring Part No. 52021-09H 716

 73 “Freshwater pump,complete as shown on front page

 ” Part No. 51610-11H 105

 74 Slide ring joint Part No. 51610-11H 095

 75 Impeller Part No. 51610-11H 130

 76 Disc Part No. 51610-11H 201

 77 Self locking nut Part No. 51610-11H 191

 78 Washer Part No. 51610-11H 225

 79 Screw Part No. 51610-11H 237

 80 Spur gear Part No. 51610-11H 213

 81 Retaining ring Part No. 51610-11H 071

 82 Ball bearing Part No. 51610-11H 046

 83 Shaft, incl. item 191 and 201 Part No. 51610-11H 178

 84 Depp groove ball bearing Part No. 51610-11H 034

 85 Rocker arm,exhaust complete Part No. 50502-03H 010

 86 Screw Part No. 51325-02H 059

 87 Safety filter,complete Part No. 51415-01H 010

 88 O-ring Part No. 51415-01H 058

 89 O-ring Part No. 51415-01H 046

 90 Locking screw Part No. 51415-01H 071

 91 Nut Part No. 51415-01H 034

 92 Gasket Part No. 51415-01H 083

 93 Drain cock,complete Part No. 51415-01H 095

 94 Pressure pipe Part No. 51404-07H 034

 95 O-ring Part No. 51435-03H 200

 96 O-ring Part No. 51435-03H 212

 97 Retaining ring Part No. 51435-03H 070

 98 Retaining ring Part No. 51435-03H 094

 99 O-ring Part No. 51502-04H 049

 100 O-ring Part No. 51502-04H 182

 101 O-ring Part No. 51502-04H 157

 102 Screw Part No. 51502-04H 098

 103 Screw Part No. 51502-04H 121

 104 Screw Part No. 51502-04H 241

 105 Filter body O-ring Part No. 51515-02H 109

 106 Body,complete Part No. 51515-02H 014

 107 Rotor,complete Part No. 51515-02H 195

 108 Straight malestud coupling Part No. 51535-02H 062

 109 Ball valve Part No. 51535-02H 050

 110 Adjustable straightmale stud coupling Part No. 51535-02H 037

 111 HT freshwater, inlet F1 Part No. 51902-04H 209

 112 HT freshwater, outlet F2 Part No. 51902-04H 210

 113 LT freshwater/raw water,inlet G1 Part No. 51902-04H 222

 114 LT freshwater/raw water,outlet G2 Part No. 51902-04H 234

 115 Compressed air, inlet K1 Part No. 51902-04H 271

 116 Oil vapour discharge, outlet C13 Part No. 51902-04H 126

 117 Venting to expansion tank/Fresh water for preheating F3/F4 Part No. 51902-04H 163

 118 Conical element, complete Part No. 51903-02H 013

 119 Screw Part No. 51903-02H 025

 120 Gasket Part No. 51103-06H 229

 121 Screw Part No. 51103-06H 038

 122 Washer Part No. 51103-06H 051

 123 Nut Part No. 51103-06H 063

 124 Screw Part No. 51103-06H 087

 125 Washer Part No. 51103-06H 099

 126 Screw Part No. 51103-06H 110

 127 Plug screw Part No. 51103-06H 122

 128 Packing ring Part No. 51103-06H 134

 129 Sleeve Part No. 51103-06H 158

 Sleeve Part No. 51103-06H 158

 130 Thermostatic element for lub. Oil Part No. 51103-06H 146

 Part No.

 131 Retaining ring Part No. 51103-06H 171

 132 Stud Part No. 51103-06H 195

 133 Gasket Part No. 51103-06H 205

 134 Screw Part No. 51103-06H 254

 135 Thermostatic element for HT cooling water Part No. 51103-06H 278

 Part No.

 136 Thermostatic element for LT cooling water Part No. 51103-06H 291

 Part No.

 137 Gasket Part No. 51103-06H 301

 138 Screw Part No. 51103-06H 349

 139 Screw Part No. 51103-06H 350

 140 Gasket Part No. 51103-06H 374

 141 Screw Part No. 51103-06H 386

 142 Intermediate piece Part No. 51103-06H 398

 143 O-ring Part No. 51103-06H 408

 144 Screw Part No. 51103-06H 433

 145 O-ring Part No. 51103-06H 445

 146 Screw Part No. 51103-06H 469

 147 Plug screw Part No. 51103-06H 470

 148 Packing ring Part No. 51103-06H 482

 149 O-ring Part No. 51103-06H 504

 150 Screw Part No. 51103-06H 516

 151 Spring washer Part No. 51103-06H 528

 152 Spring Part No. 51103-06H 541

 153 Piston Part No. 51103-06H 553

 154 Screw Part No. 51103-06H 565

 155 O-ring Part No. 51103-06H 577

 156 Screw Part No. 51103-06H 600

 157 Screw Part No. 51103-06H 624

 158 Thrust piece Part No. 51103-06H 636

 159 Covering plate Part No. 51103-06H 648

 160 Setting screw Part No. 51103-06H 661

 161 Nut Part No. 51103-06H 673

 162 Cover Part No. 51103-06H 685

 163 Temperature sensor TE 01 L=150,0-200℃ Part No. 50907-03H 360

 Part No. 50907-03H 360

 164 Temperature sensor TE 40 Part No. 50907-03H 396

 Temperature sensor TE 40 Part No. 50907-03H 396

 165 Temperature sensor TE 31 Part No. 50907-03H 384

 Temperature sensor TE 31 Part No. 50907-03H 384

 166 Temperature sensor TE 61 Part No. 50907-03H 443

 167 Temperature sensor TE 62 Part No. 50907-03H 455

 168 Pressure transmitter PT 21 Part No. 50907-03H 132

 Pressure transmitter PT 21 Part No. 50907-03H 132

 169 Pressure transmitter PT 22 Part No. 50907-03H 144

 Pressure transmitter PT 22 Part No. 50907-03H 144

 170 Pressure transmitter PT 40 Part No. 50907-03H 168

 Pressure transmitter PT 40 Part No. 50907-03H 168

 171 Pressure transmitter PT 31 Part No. 50907-03H 107

 Pressure transmitter PT 31 Part No. 50907-03H 107

 172 Thermostat TSH 12 Part No. 50907-03H 012

 173 Pump element,complete Part No. 51401-07H 087

 174 Qualitaets-Sicherung, TEMPRESS,Kombitemp type k130, Mebeinsatz1XPT100/B/3

 175 SYMPOL D, CMA132, Terminal board，Generator relais card

 176 SYMPOL D, CMA135, Terminal board diesel
